CAR DVR,CAR RECORDER P7000 140 degree wide-angle /720P HD infrared traffic recorder P7000 manufacturer from China Shenzhen Dome Technology CO,.LTD

CAR DVR,CAR RECORDER P7000 140 degree wide-angle /720P HD infrared traffic recorder

Payment Terms:	T/T,L/C,WU
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: P7000

Delivery Date: 1-3Days

Supply Ability:: 10000 Piece/Pieces per Mont...

Means of Transport: Air

Brand Name: CARCAM

LCD Size;2.4LTPS(16:10)
Recorded Video:VGA/QVGA/D1/HD

Start Vehicle Travelling Data Recorder

l Power On/ Off

Press the power button for a few seconds to get powered on. Then the blue indicator light will be illuminated.

Press the power button again for a few seconds to get powered off. Then the blue indicator light will go out.

Note: Vehicle travelling data recorder will power off automatically after an indication of low battery.

l Infrared Night Vision Switch

Press shortly to activate Infrared Night Vision function in standby or working mode.

Press again shortly to close Infrared Night Vision function.

l Battery Charge

There are three ways to charge the battery. The red indicator light will be illuminated during the charge. The whole process takes about 180 minutes. The red indicator light will then go out after the charge is completed.

1:Charge with the Power Supply Adapter

2:Charge with the PC-USB

3:Charge with the In-Car Power Supply

l Insert Memory Card

Following the direction silk-screened on the recorder, push the SD card straight into the slot until a click is heard.

Remove the card: push the SD card forward and the card will be popped out automatically.

l Overturn the LCD

The LCD can be overturned at an angle of 90 degrees backward.

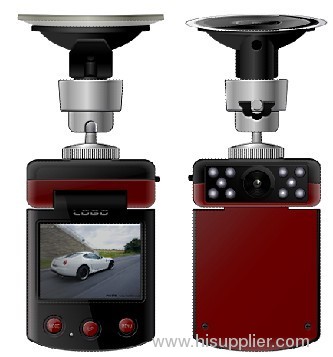

l Structure

1)Camera Fill Light 2)Lens 3)Speaker

4)OK key 5)Power Switch 6)MODE key

7)Microphone 8)RESET Hole 9)Car Bracket Interface

10)AV-OUT 11)USB interface 12)MENU key

13)Infrared Receiver Port 14)HDMI-OUT 15)SD Card Holder

Main Operations:

l Switch between Video, Photo and Playback mode

Press MODE key to switch between Video, Photo and Playback mode

l System Setting

Press MENU key shortly to enter video output setting. The background of Video Output Setting column is blue at the moment. Press MENU key again shortly to switch to system setting. Now the column background of Setting column is blue. Press MENU key again shortly to exit.

l Video

Press OK key to activate video recording function from standby and press OK key again to stop.

l Photograph

Press OK key to activate photo taking function from standby.

l Video/ Photograph Playback

1:Press MODE key shortly to switch to video playback mode.

2:Select the target file by moving MENU key upward to downward.

3:Press OK key to play or stop the playing of the file.

4:Press MENU key downward shortly to select fast forward mode during playing.

5:Press OK key to zoom the photo while viewing.

l Connected to PC

1:When it is connected to Pc by USB data line, camera screen shows the picture of linkup while the blue indicator light is illuminated. Wait for a few seconds.

2:The PC will recognize the mobile storage disk automatically.

Note:Computer operation system supported:Windows 2000/XP/Vista/Windows 7,MAC OS × 10.3.6

3:View and manage files on the PC.

4:Remove the USB data line and the video recorder will be powered off automatically.

Note: Crashing caused by mishandling can be solved by removing the battery or press the Reset key and then power on.

l Product Features

u Built-in low-light and high-quality sensor, capable of capturing clear pictures in a variety of occasions

u Day/ Night mode, a variety of built-in scenes for selection

u Intellectual control of infrared fill light

u Built-in microphone/ speaker

u Support high-capacity SD card

u Support recording function while charging

u Loop video recording, that is deleting old files and then recording new ones automatically

u Power-efficient mode

l Specification

LCD Size	2.4LTPS(16:10)
Camera Lens	140 degree A+ class, high-resolution and ultra-wide-angle lens
Language	A variety of languages are supported.
Recorded Video	VGA/QVGA/D1/HD
Recorded Video Format	AVI
Photograph Mode	4000*3000
Photo Format	JPG
Memory Card	SD
Microphone	Supported
Built-in Sound Equipment	Supported
Infrared Night Vision	Supported
Video Output	AV-OUT/HDMI-OUT
Video Format	PAL/NTSC
Current Frequency	50HZ/60HZ
USB Interface	USB 2.0
Power Interface	5V 800ma
Battery	High-capacity removable battery
Remote Control	Supported
